Sand Unit
What is the Sand Unit?
- Our Sand Unit produces and supplies wet process classification techniques and equipments by using the cyclone. The principal theory of cyclone is that the material is sprayed along the tangential section of the cylindrical tank, and with the centrifugal force the particles are separated with its own sizes.
- According to each particle’s Centrifugal force, weight of the particle, specific gravity of the liquid, concentration, viscosity, and residence time, thick particles are UNDERFLOWED through the outer surface, and small particles OVERFLOWED.
- The advantage of our Sand Unit is that it can process large volume with relatively easy classification method.
Characteristics of the Sand Unit
- Sand Unit has excellent efficiency rate, more than 99% of the sand can be retrieved.
- Removal rate of small particle is also more than 95%, and designed according to the KSF2511.
- The standard mesh point is 200 mesh (0.074), and the separation size can be adjusted.
- Our Sand Unit is easy to change the parts, and can be adjusted according to the different input volume, capacity, or circumstances.

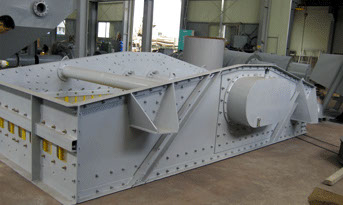

- With its small size, it can be used in small area, and with the dehydration screen the water content could stay at the rate of 10%.
