Sand Pump
A slurry pump is a type of centrifugal pump, lobe pump or peristaltic hose pump in physics principle that increases the pressure of liquid and solid particle mixture (aka slurry), through centrifugal force (a rotating impeller) and converts electrical energy into slurry potential and kinetic energy.
Slurry pumps are widely used to transport corrosive/abrasive and high concentration slurry in many industries such as Gold, Silver, Iron ore, Tin, Steel, Coal, Titanium, Copper, Mineral sands, Lead and Zinc. Various other industries include Molybdenum, Electric Utilities, Oil Shale, Water & Sewage Utilities, Building areas, Sand & Gravel, Tobacco and Agriculture (hog, poultry, dairy manure) and are grouped by:
- impeller quantity: single stage and multistage slurry pump
- shaft position from the horizontal: horizontal and vertical slurry pump
- impeller suction way: single suction and double suction slurry pump
- pump casing structure: solid casing, horizontal split-case, and vertical split-case slurry pump
Characteristics of Sand Pump
The main parts of the Sand Pump such as the impeller and casing, are also manufactured in our factory. With our special casting alloy the durability of these parts are excellent.
Our Sand Pump has double casing, and firmly locked up with 4~5 bolts. Once these bolts are removed the change of liner and inspection is convenient.
Impeller is assembled by screw type, thus it is easy to disassemble, replacement, and fixing.
Our factory also has casting and heat treatment facility, so all the pump related parts can be manufactured on time. This reduces huge amount of production time and cost.
WS Dredge System Sand Pumps
Bigger size pumps
WS Dredge System provides manufacturing of bigger sand pumps on the terms of custom order. Please, use our product inquiry form to specify your order.

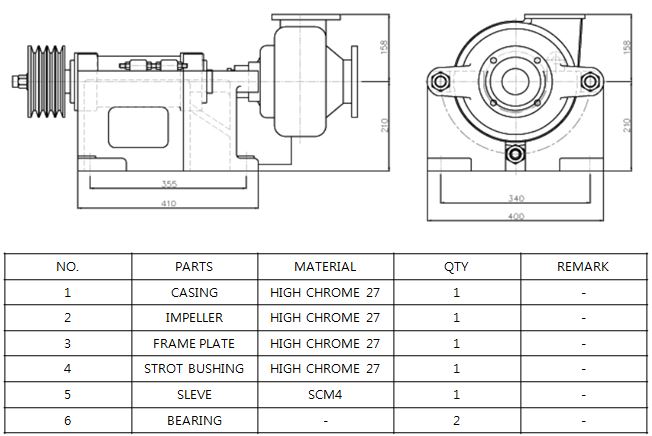

3" x 2"
Sand Pump

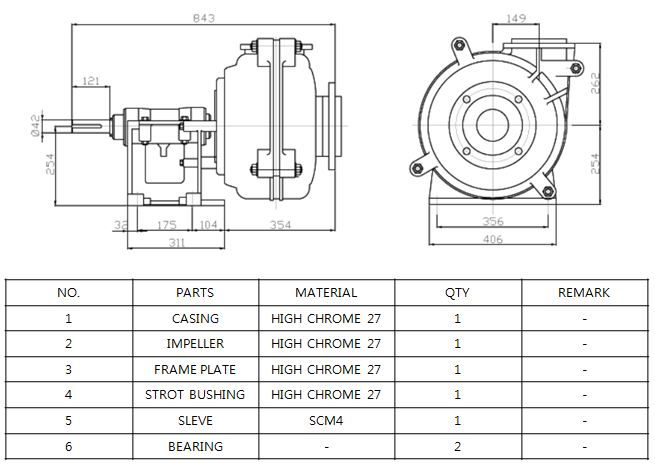

4" x 3"
Sand Pump

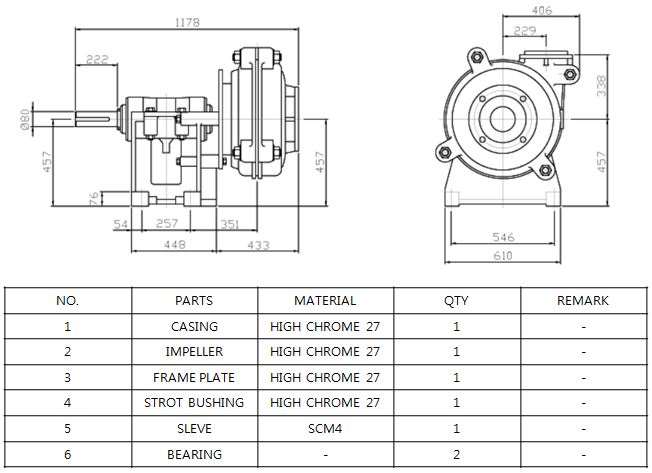

6" x 4"
Sand Pump

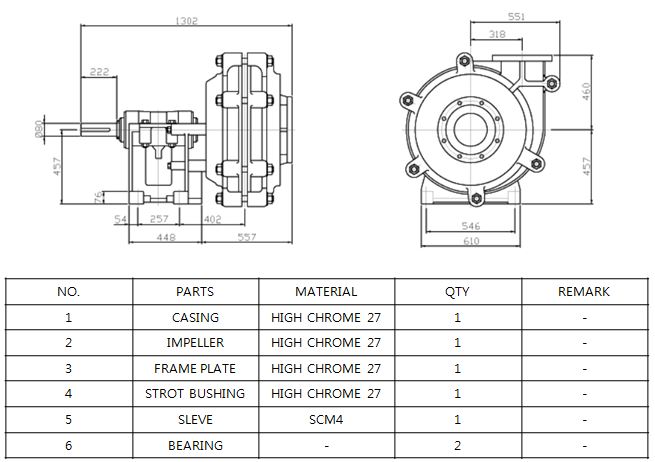

8" x 6"
Sand Pump
10" x 8"
Sand Pump
Bigger
Sand Pumps
